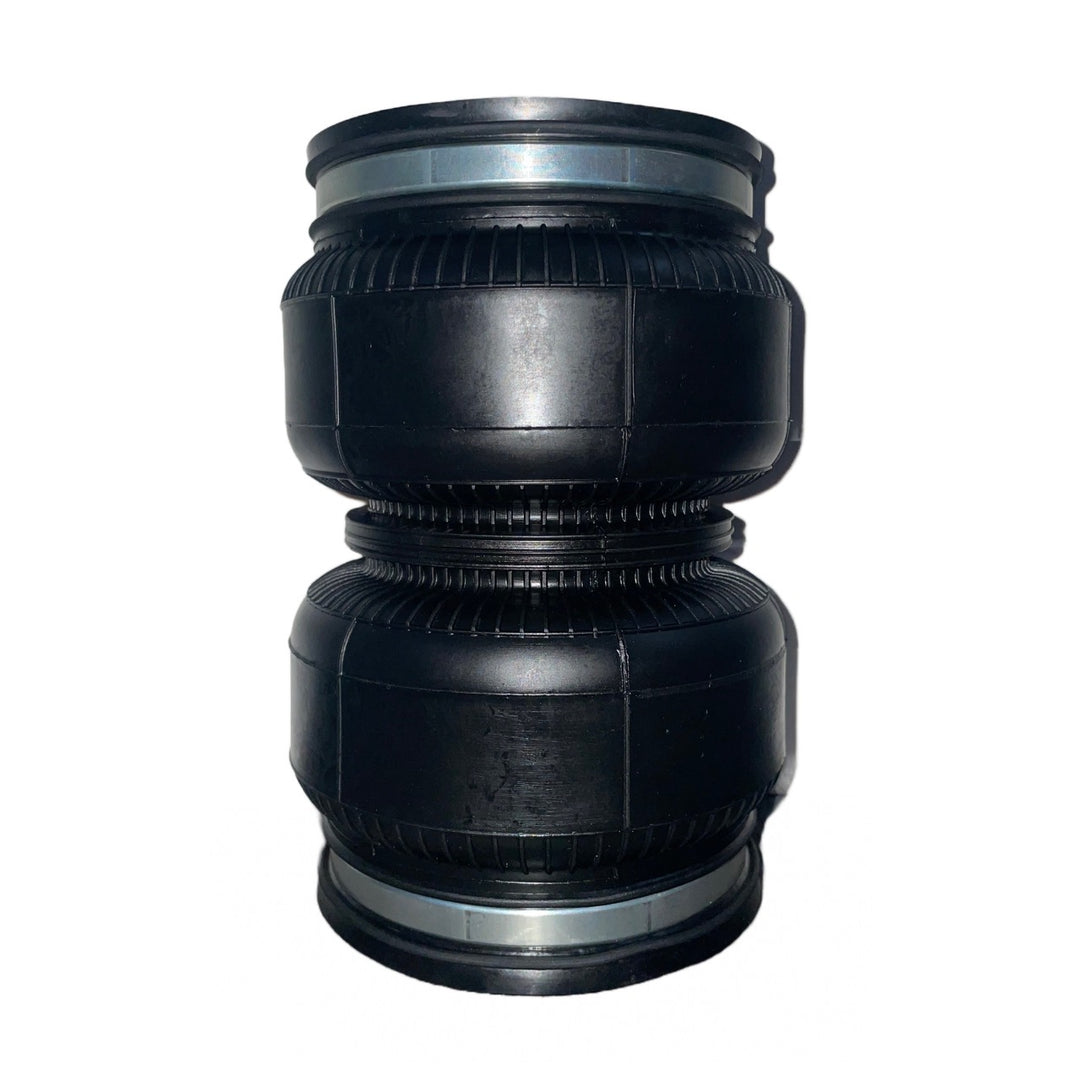

CORE Replacement Air Bag/ Air Strut Replacement Bag

Replacement Double Bellow air strut bag. Replace your blown bags on any air strut with our Core double bellow slim bags. A direct replacement for your current sleeve, regular double bellow, and single bellow bags on most common coilover.

We recommend to replace bags by the pair. For example: If you need to replace your L/F bag, replace both Front bags. All replacement bags are coilover and vehicle specific.

** Please note this Replacement Bag is for Integrated type bags that would replace the spring on a true one piece coilover**


*Max peak pressure: 200psi
*Max ride pressure: 140psi~

**Different coilover models yield different results based on strut rod stroke and lower perch height adjustment limits
Please note most replacement bags and kits are a direct plug and play fit to your current coilovers. Mcpherson style struts commonly need modifications to the pillow ball camber plate center dowel to allow the strut rod to completely thread onto the top nut.*


Some vehicle and coilover models are made to order, please email us to see if your vehicle falls under these circumstances.
Professional installation is recommended and proper adjustments are required to achieve optimal ride quality. We do not hold responsibility for damages due to improper installation. All of our products hold a limited warranty at the manufacturers discretion.

Bag longevity is based on over all driving habits and air pressure settings. As all aftermarket suspension components, our air bags are endorsed for Off-Road or Show use only.

We hold no responsibility for any voided warranties.

Standard is a double bellow bag

Bag dimensions range from

W128mm x H187mm

W121mm x H142mm

W140mm x H183mm
